Ground Protection Mats

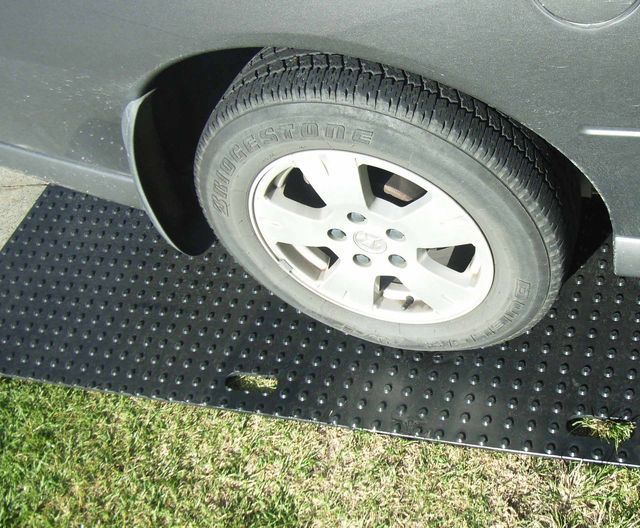

Matrix Ground Mats (also called bog mats) are used to protect grass and soft ground from vehicle tyres or tracks, and to prevent wheeled vehicles from getting stuck in soft ground.  2.4x1.2m mats have over 1600 studs on each side; one side provides grip to the tyres, while the other side grips the ground.

They are moulded from a special grade of UV-stabilised polyethylene, which is designed for long outdoor life.  The material used allows the mats to flex without breaking even under the weight of a heavy vehicle, while being rigid enough to spread the load, which minimises damage to soft ground.

Benefits
  • Much lighter than slippery steel plates
  • Longer lasting than slippery plywood
  • Prevent damage to lawns and paving surfaces
  • Prevent bogged down vehicles
  • Prevent injuries and improve site efficiency
  • Easy to transport, carry, lay out and store
  • Project professional image
Applications
  • Construction and civil engineering works
  • Utilities and infrastructure maintenance
  • Golf course and sports field maintenance
  • Parks and gardens maintenance
  • Landscaping and Cemetery works
  • Emergency access
  • Temporary roadways and car parks
  • Military sites
  • Caravan parks
  • Heritage sites and eco sensitive areas
Specifications

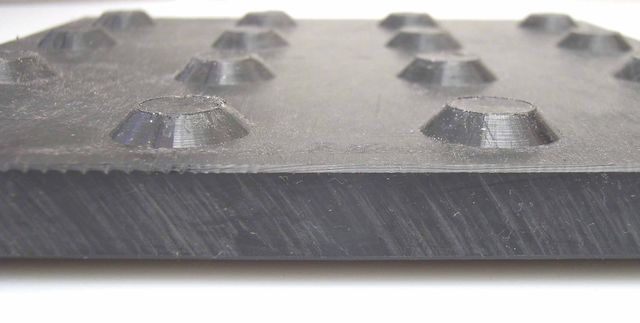

Thickness: 12mm + 3mm studs on both sides (other thicknesses and one-sided mats are available by Special Order)
Colours: Black, Light Green (other colours available by Special Order)
Note: Special Orders are subject to Minimum Order Quantity.

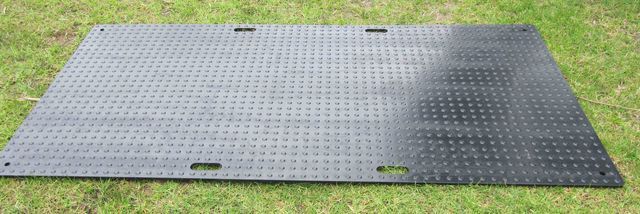

Mat size: 2400x1200mm   Weight: 38kg approx.

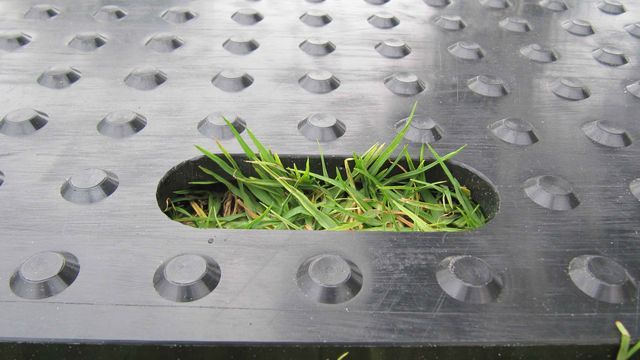

4 carry handle cut outs for easy manual handling
4 corner slots for joiners or pegs
4 rounded corners for safety

Mat size: 2400x600mm   Weight: 19kg approx.
2 carry handle cut outs for easy manual handling
4 corner slots for joiners or pegs
4 rounded corners for safety

Mat size: 1200x600mm   Weight: 9.5kg approx.
2 carry handle cut outs for easy manual handling
4 rounded corners for safety

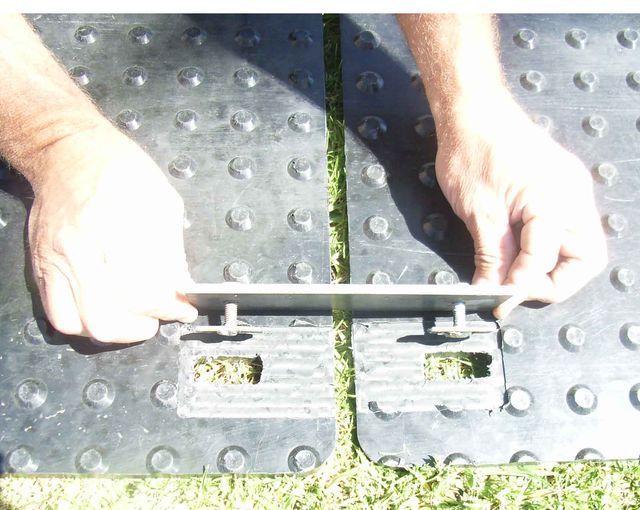

2-way and 4-way Ground Mat Joiners are also manufactured by Design Flow.  They are used to clip mats together to form a continuous roadway.  They prevent the mats from separating and lifting relative to one another, which can create a hazard.

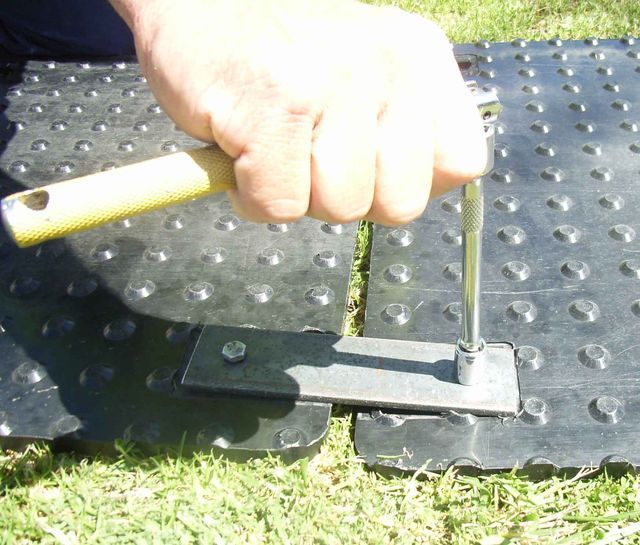

To join mats simply rotate the bolts to line up the tabs with the slots in the mats, insert and rotate 90 degrees.

Matrix Ground Mats and joiners are sold in Australia exclusively by Polysource Australia Pty Ltd.

T:  02 9875 1579

M: 0409 123 227

W: www.polysource.com.au

E:  sales@polysource.com.au


Overseas customers should contact Design Flow directly.
